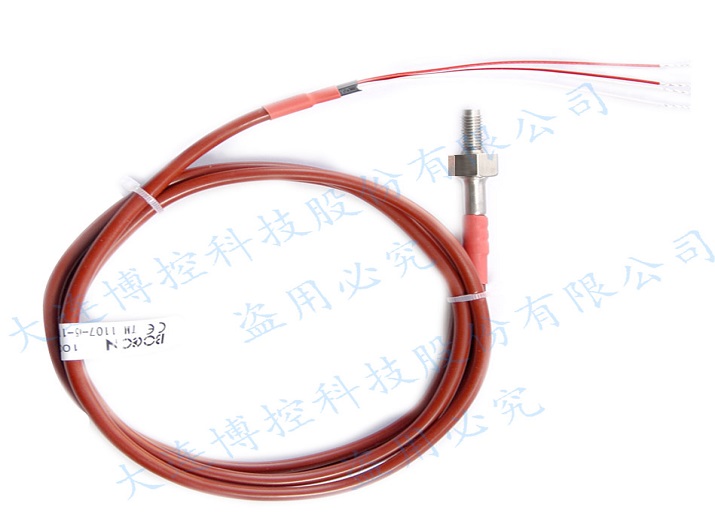

Screw-in RTD temperature probes(TM1107)
|
|
|
|
|
Applicatio
ns：
The Screw-in RTD
temperature probes are mainly used for measuring temperature in mechanical
equipments, including heaters, plants, mechanical equipments, generators,
etc.
|
|
Technical data
Connecting cable: Silicone,
temperature range:-50℃~+180℃
Teflon, temperature
range -50℃~+260℃
Glass Fiber,
temperature range:-50℃~+350℃
Protection tube: Stainless steel
304/316, OD=4mm,5mm, 6mm,8mm，10mm
Sensor element:
Pt100, Pt500, Pt1000 meets IEC 751
Tolerance : Class B: △t=±(0.30 + 0.005 |t| )℃
Class A: △t=±(0.15 + 0.002 |t| )℃
Response time：t0.9 approx. 10secs, in water 0.2
m/sec, diameter 6mm
